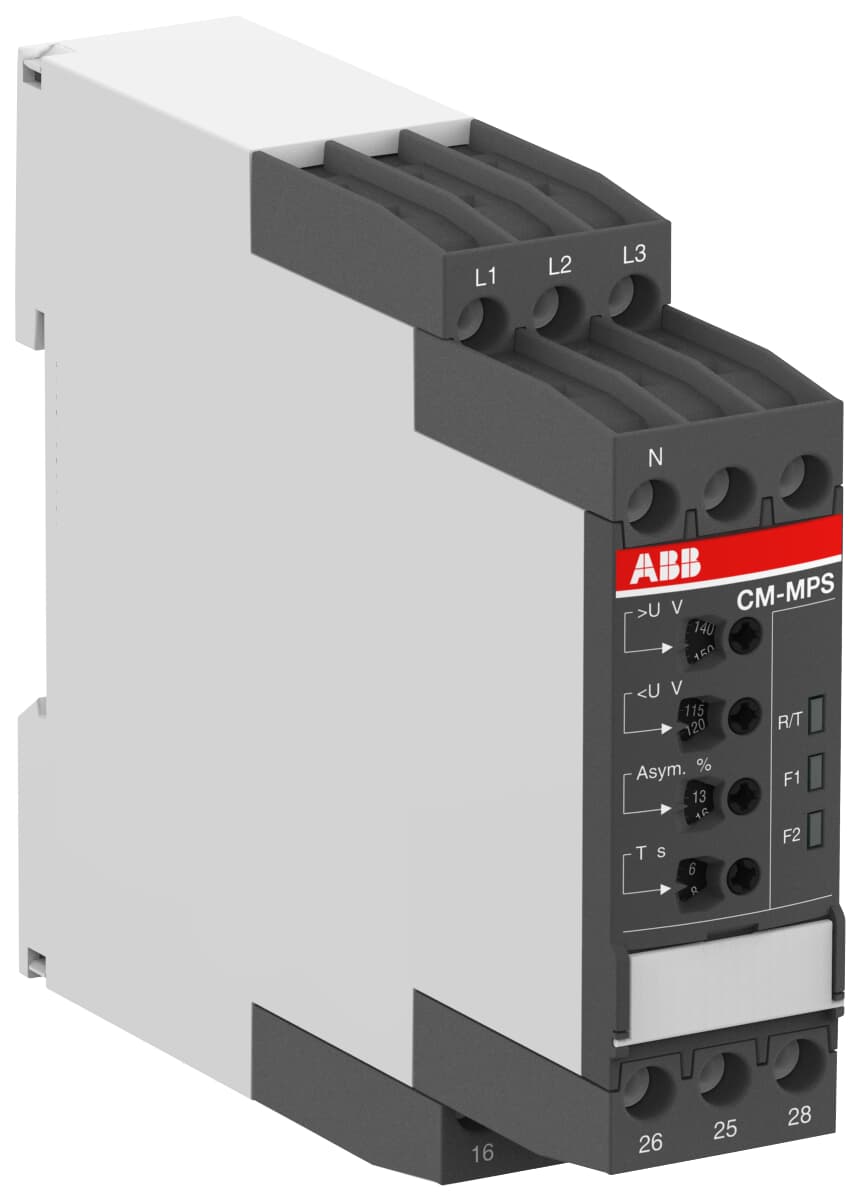

Three-phase monitoring relay (Phase failure detection, sequence monitoring, Over- and undervoltage monitoring, unbalance detection) 2C/O, 0,0.1-30s, L1-L2-L3=3x300-500VAC (CM-MPS.41S)
Specifications | 1SVR730884R3300 |
| Extended Product Type | CM-MPS.41S |
| Country of Origin (Estimated) | Germany (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Three-phase Monitoring Relay |
| Catalog Description | CM-MPS.41S Three-phase monitoring relay 2c/o, 0,0.1-30s, L1-L2-L3=3x300-500VAC |
| Function | Phase failure detection
Phase sequence monitoring
Over- and undervoltage monitoring
Phase unbalance detection |
| Measuring Range | (L-L) 300 ... 500 V AC |
| Time Range | ≤ 200 ms start-up delay
0 s or 0.1 ... 30 s tripping delay (ON or OFF) |
| Rated Control Supply Voltage (Us) | (L-L) 300 ... 500 V AC |
| Output | 2 c/o (SPDT) contacts |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Electrical Durability | AC-12 100000 cycle |
| Mechanical Durability | 30000000 cycle |
| Tightening Torque | 0.6 ... 0.8 N·m |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 60255-27
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 508 |
| Dimensions (WxHxD) | 22.5 x 85.6 x 103.7 mm |
| Net weight | 0.14 Kg |
