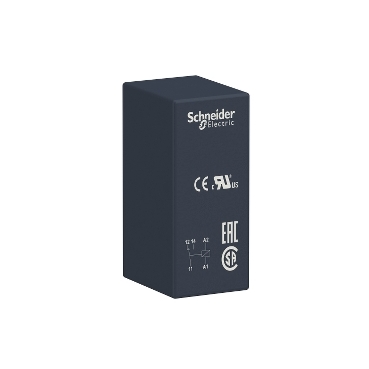

Interface plug-in relay, Harmony RSB, , 12A, 1CO, 230VAC.
Specifications | RSB1A120P7 |
| Range of product | Harmony Control Relays |
| Country of Origin (Estimated) | Austria |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Plug-in relay |
| Device short name | RSB |
| Contacts type and composition | 1 C/O |
| Contact operation | Standard |
| [Uc] control circuit voltage | 230 V AC 50/60 Hz |
| [Ithe] conventional enclosed thermal current | 12 A at -40…40 °C |
| Status LED | Without |
| Control type | Without push-button |
| Shape of pin | Flat (PCB type) |
| [Ue] rated operational voltage | 184...345 V AC 50/60 Hz |
| Contacts material | Silver alloy (AgNi) |
| [Ie] rated operational current | 12 A (AC-1/DC-1) NO conforming to IEC
6 A (AC-1/DC-1) NC conforming to IEC |
| Resistive rated load | 12 A at 250 V AC
12 A at 28 V DC |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 100000 cycles, 12 A at 250 V, AC-1 NO
100000 cycles, 6 A at 250 V, AC-1 NC |
| Product weight | 0.014 kg |
