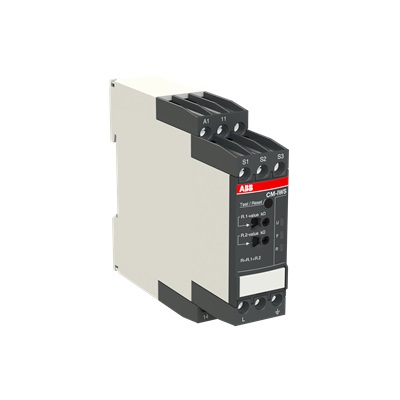

Insulation monitoring relay 1C/O, 1-100kOhm, 24-240VAC/DC (CM-IWS.2S)
Specifications | 1SVR730670R0200 |
| Extended Product Type | CM-IWS.2S |
| Country of Origin (Estimated) | Germany (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Insulation Monitoring Relay |
| Catalog Description | CM-IWS.2S Insulation monitoring relay 1c/o, 1-100kOhm, 24-240VAC/DC |
| Function | Unearthed AC systems
Up to 400 V AC |
| Measuring Range | 1 ... 100 kΩ |
| Rated Control Supply Voltage (Us) | 24 ... 240 V AC/DC |
| Output | 1 c/o (SPDT) contact |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| System Leakage Capacitance (CE) | 10 µF |
| Electrical Durability | AC-12 100000 cycle |
| Mechanical Durability | 30000000 cycle |
| Tightening Torque | 0.6 ... 0.8 N·m |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61326-2-4
IEC/EN 61557-1
IEC/EN 61557-8
UL 508 |
| Dimensions (WxHxD) | 22.5 x 85.6 x 103.7 mm |
| Net weight | 0.141 Kg |
