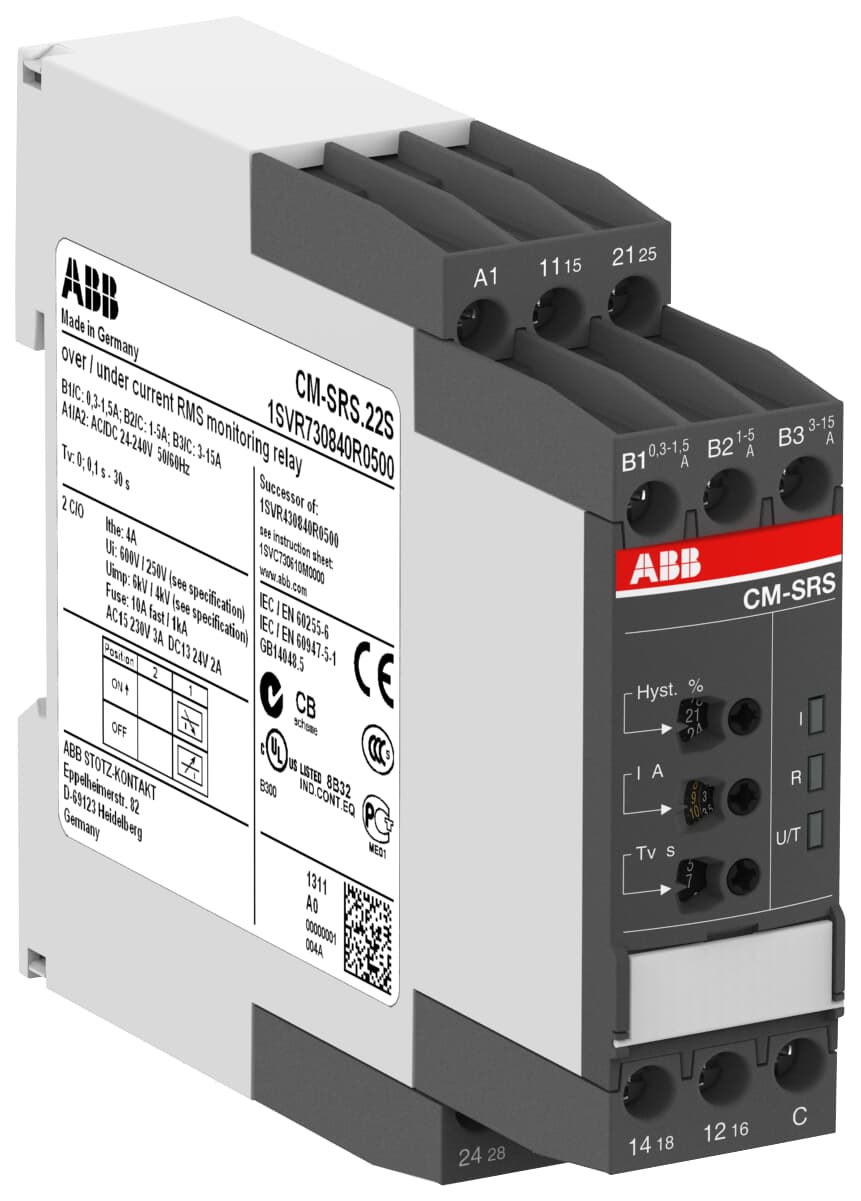

Current monitoring relay (Over- or undercurrent monitoring) Measuring Range (0.3-15.A, 1-5A, 3-15A) 2C/O,B-C=0.3-15A RMS, 24-240VAC/DC (M-SRS.22S)
Specifications | 1SVR730840R0500 |
| Extended Product Type | CM-SRS.22S |
| Country of Origin (Estimated) | Germany (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Current Monitoring Relay |
| Catalog Description | CM-SRS.22S Current monitoring relay 2c/o,B-C=0.3-15A RMS, 24-240VAC/DC |
| Function | Over- or undercurrent monitoring |
| Measuring Range | 0.3 ... 1.5 A
1 ... 5 A
3 ... 15 A |
| Time Range | 0 s or 0.1 ... 30 s tripping delay (ON) |
| Rated Control Supply Voltage (Us) | 24 ... 240 V AC/DC |
| Output | 2 c/o (SPDT) contacts |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Electrical Durability | AC-12 100000 cycle |
| Mechanical Durability | 30000000 cycle |
| Tightening Torque | 0.6 ... 0.8 N·m |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 60255-27
IEC/EN 61000-6-2
IEC/EN 61000-6-3
UL 508 |
| Dimensions (WxHxD) | 22.5 x 85.6 x 103.7 mm |
| Net weight | 0.144 Kg |
