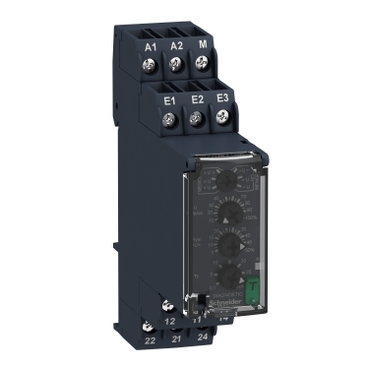

Current control relay, Harmony Control Relays, 5A, 2CO, 0.15 to 15A, 24 to 240V AC DC.
Specifications | RM35JA32MR |
| Range of product | Harmony Control Relays |
| Country of Origin (Estimated) | Indonesia |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Relay type | Current control relay |
| Product or component type | Current control relay |
| Relay name | RM35JA |
| Relay monitored parameters | Overcurrent or undercurrent in window mode
Overcurrent or undercurrent detection |
| Time delay | Adjustable 0.1...30 s, +/- 10 % of the full scale value Tt- time delay upon fault |
| Supply voltage limits | 20.4…264 V AC/DC |
| Output contacts | 2 C/O |
| Nominal output current | 8 A |
| Local signalling | LED (yellow) for relay ON
LED (green) for power ON |
| Mounting support | 35 mm DIN rail conforming to IEC 60715 |
| Electrical durability | 100000 cycles |
| Mechanical durability | 10000000 cycles |
| [Un] rated nominal voltage | 24...240 V AC/DC 50/60 Hz, non self-powered |
| Control type | With test button |
| Standards | IEC 60255-1 |
| Width | 22.5 mm |
| Net weight | 0.12 kg |
