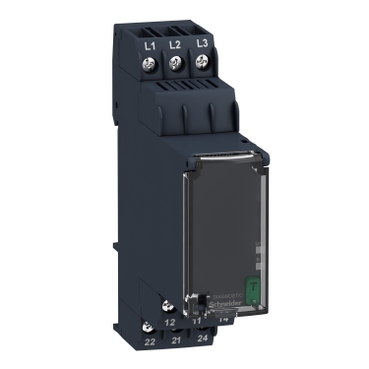

Harmony, Modular 3-phase supply control relay, 8A, 2 CO, 183…528VAC.
Specifications | RM22TG20 |
Range of product | Harmony Control Relays |
Country of Origin (Estimated) | Indonesia |
Warranty | 12 months |
CO/CQ | Yes (if) |
Relay type | Control relay |
product or component type | 3-phase control relay |
Network number of phases | 3 phases |
Relay name | RM22TG |
Relay monitored parameters | Phase sequence Phase failure detection (2 or more phase cut) |
Time delay type | Without |
Measurement range | 208...480 V voltage AC |
Contacts type and composition | 2 C/O |
Reset time | 1500 ms at maximum voltage |
[Us] rated supply voltage | AC/DC |
Supply voltage limits | 304…576 V AC |
Output contacts | 2 C/O |
Voltage range | 183…528 V AC |
Operating limits | 183...528 V AC |
Output contacts | 2 C/O |
Status LED | LED (yellow) relay ON LED (green) power ON |
Mounting support | 35 mm DIN rail conforming to IEC 60715 |
Electrical durability | 100000 cycles |
Mechanical durability | 10000000 cycles |
Control type | With test button |
Width | 22.5 mm |
Net weight | 0.09 kg |
