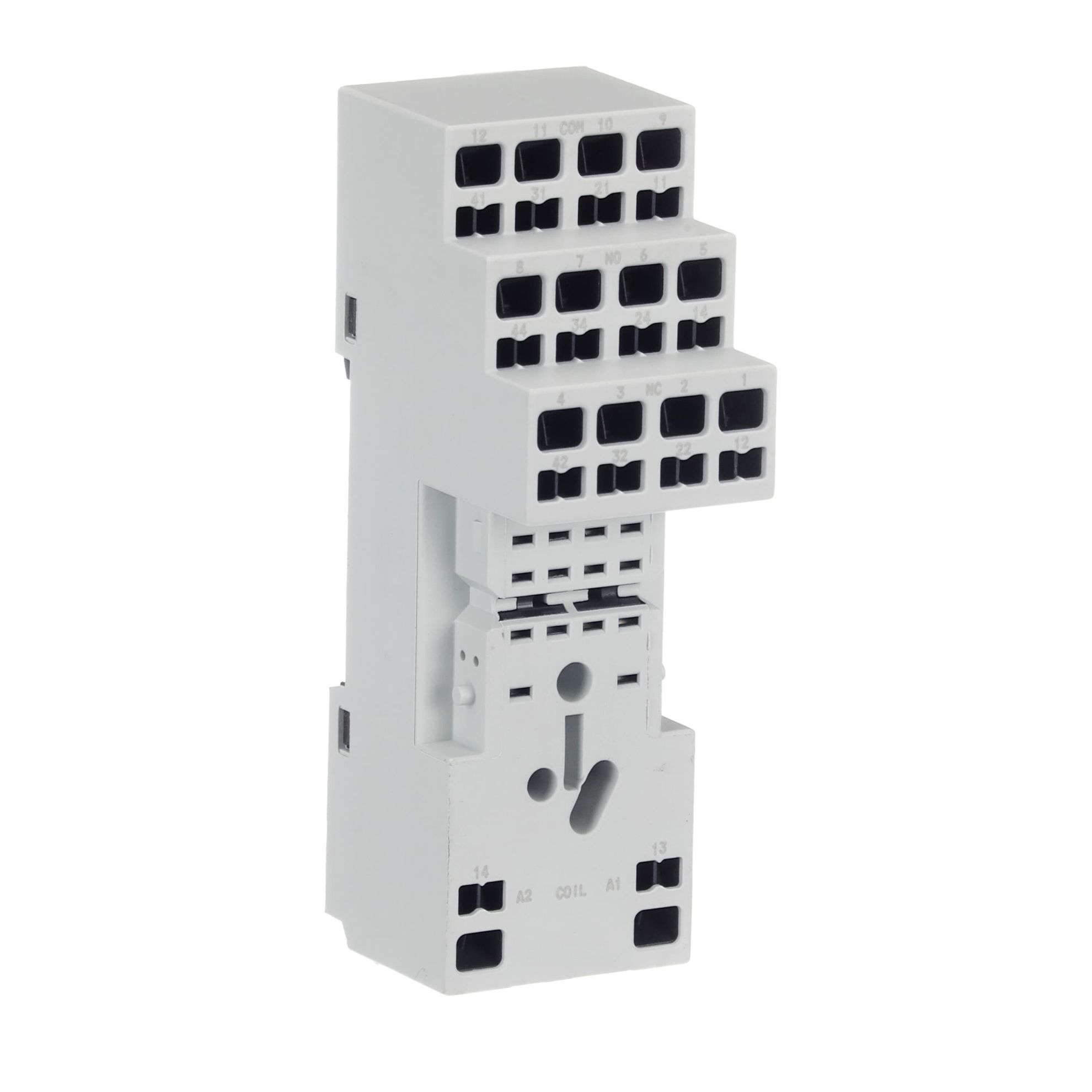

Logical socket for 2C/O or 4C/O CR-M relay (CR-M4LC)
Specifications | 1SVR405651R3200 |
| Extended Product Type | CR-M4LC |
| Country of Origin (Estimated) | China (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Miniature Relay Range |
| Catalog Description | CR-M4LC Logical socket for 2c/o or 4c/o CR-M relay |
| Function | Accessory for interface relays CR-M |
| Sub-Function | Socket for miniature relays |
| Sub-Function 2 | Logical socket for miniature relay 2 c/o or 4 c/o |
| Rated Operational Voltage | 300 V |
| Terminal Type | Spring Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 10 A |
| Rated Insulation Voltage (Ui) | 4 V |
| Standards | CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61984
UL 508 |
| Suitable For Relay | 2c/o or 4c/o CR-M relay (Gắn cho relay 8 hoặc 14 chân lọai CR-M) |
| Dimensions (WxHxD) | 31 x42.5 x 95 mm |
| Net weight | 0.075 Kg |
