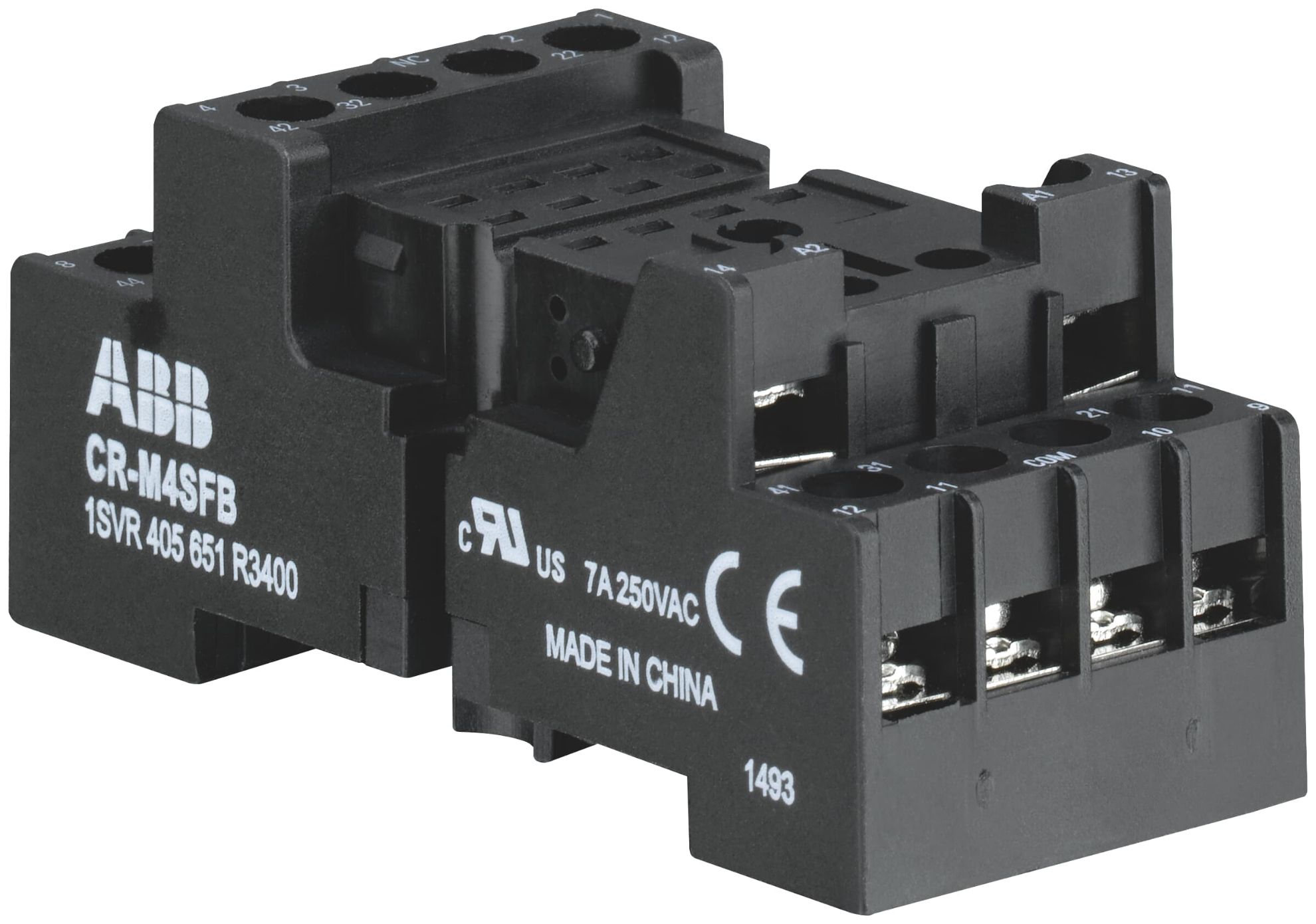

Standard socket, fork type for 2C/O or 4C/O CR-MX relay (CR-M4SFB)
Specifications | 1SVR405651R3400 |
| Extended Product Type | CR-M4SFB |
| Country of Origin (Estimated) | China (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Miniature Relay Range |
| Catalog Description | CR-M4SFB Standard socket, fork type for 2c/o or 4c/o CR-MX relay |
| Rated Operational Voltage | 250 V AC |
| Terminal Type | Fork
Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 7 A |
| Rated Insulation Voltage (Ui) | 4 V |
| Standards | CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61984
UL 508 |
| Suitable For Relay | 2c/o or 4c/o CR-MX relay (Dùng được cả relay 8 chân và 14 chân) |
| Dimensions (WxHxD) | 30.3 x 66.7 x 29 mm |
| Net weight | 0.053 Kg |
