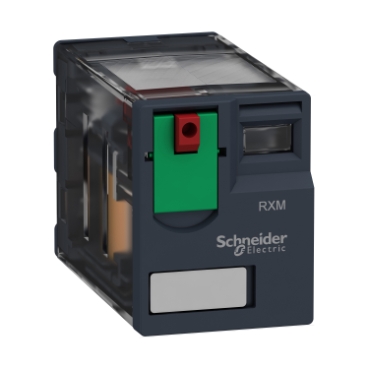

Miniature plug-in relay - Harmony RXM2L - 4 C/O - 24 VDC - 3 A - with LED.
Specifications | RXM4LB2BD |
| Range of product | Harmony Electromechanical Relays |
| Country of Origin (Estimated) | China |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Series name | Miniature |
| Product or component type | Plug-in relay |
| Device short name | RXM |
| Contacts type and composition | 4 C/O (14 Chân) |
| [Ithe] conventional enclosed thermal current | 3 A at -40…55 °C |
| Contact operation | Standard |
| [Uc] control circuit voltage | 24 V DC |
| Status LED | With |
| Control type | Without push-button |
| Rated operational voltage limits | 19.2...26.4 V DC |
| Load current | 3 A at 250 V AC
3 A at 28 V DC |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 100000 cycles for resistive load |
| Pollution degree | 2 |
| Standards | IEC 61810-1 (iss. 2)
CE |
| Product weight | 0.034 kg |
