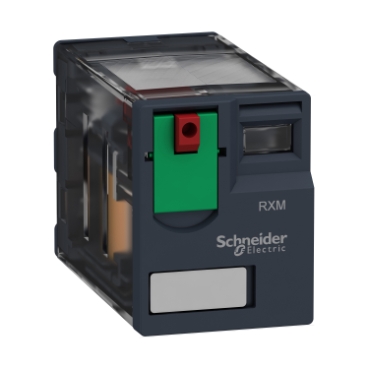

Miniature Plug-in relay - Harmony RXM 4 C/O 24 VDC 6 A with LED.
Specifications | RXM4AB2BD |
| Range of product | Harmony Electromechanical Relays |
| Country of Origin (Estimated) | China |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Series name | Miniature |
| Product or component type | Plug-in relay |
| Device short name | RXM |
| Contacts type and composition | 4 C/O (14 Chân) |
| [Uc] control circuit voltage | 24 V DC |
| Status LED | With |
| Control type | Lockable test button |
| Shape of pin | Flat |
| [Ie] rated operational current | 3 A at 28 V (DC) NC conforming to IEC
3 A at 250 V (AC) NC conforming to IEC
6 A at 28 V (DC) NO conforming to IEC
6 A at 250 V (AC) NO conforming to IEC
6 A at 277 V (AC) conforming to UL
8 A at 30 V (DC) conforming to UL |
| Continuous output current | 5 A |
| Resistive rated load | 6 A at 250 V AC
6 A at 28 V DC |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 100000 cycles for resistive load |
| Rated operational voltage limits | 19.2...26.4 V DC |
| Standards | CSA C22.2 No 14
UL 508
IEC 61810-1 |
| Product weight | 0.037 kg |
