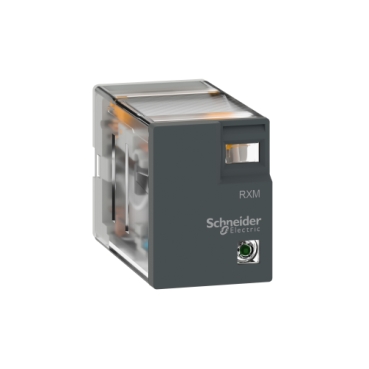

Miniature plug-in relay - Harmony RXM2L - 2 C/O - 110VAC - 5 A - with LED.
Specifications | RXM2LB2F7 |
| Range of product | Harmony Electromechanical Relays |
| Country of Origin (Estimated) | China |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Plug-in relay |
| Device short name | RXM |
| Contacts type and composition | 2 C/O |
| [Ithe] conventional enclosed thermal current | 5 A at -40…55 °C |
| Contact operation | Standard |
| [Uc] control circuit voltage | 120 V AC 50/60 Hz |
| Status LED | With |
| Control type | Without push-button |
| [Ie] rated operational current | 5 A (AC-1/DC-1) NO conforming to IEC
2.5 A (AC-1/DC-1) NC conforming to IEC
1 A at 28 V (DC-13) NO |
| Rated operational voltage limits | 96...132 V AC |
| [Ui] rated insulation voltage | 250 V conforming to IEC |
| Maximum switching voltage | 250 V AC
28 V DC |
| Load current | 5 A at 250 V AC
5 A at 28 V DC |
| Standards | CE
IEC 61810-1 (iss. 2) |
| Mechanical durability | 10000000 cycles |
| Electrical durability | 100000 cycles for resistive load
50000 cycles, 1 A at 28 V, DC-13 NO |
| Pollution degree | 3 |
| Product weight | 0.032 kg |
