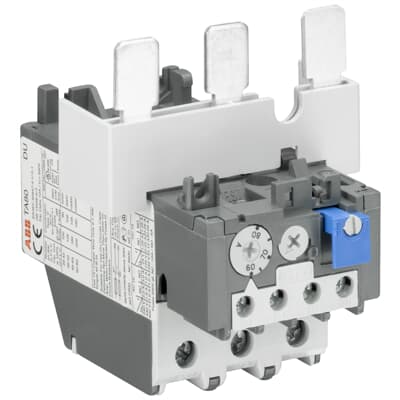

Thermal Overload Relay 29-42A Suitable For A95-A110, AX95-AX150 (TA80DU-42)
Specifications | 1SAZ331201R1003 |
| Range | Thermal Overload Relay |
| Country of Origin (Estimated) | Bulgaria (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Extended Product Type | TA80DU-42 |
| Number of Poles | 3P |
| Number of Auxiliary Contacts | 1NC+1NO |
| Setting Range | 29 ... 42 A |
| Rated Operational Current (Ie) | 42 A |
| Rated Operational Voltage | Main Circuit 690 V AC
Main Circuit 440 V DC |
| Rated Operational Current AC-15 (Ie) | (120 V) NC 3 A
(120 V) NO 1.5 A
(240 V) NC 3 A
(240 V) NO 1.2 A
(400 V) NC 0.75 A
(400 V) NO 0.37 A
(440 V) NC 0.75 A
(440 V) NO 0.37 A
(500 V) NC 0.3 A
(500 V) NO 0.25 A |
| Rated Operational Current DC-13 (Ie) | (125 V) NC 0.25 A
(125 V) NO 0.25 A
(24 V) NC 1.25 A
(24 V) NO 1.25 A
(250 V) NC 0.12 A
(250 V) NO 0.04 A
(60 V) NC 0.25 A
(60 V) NO 0.25 A |
| Conventional Free-air Thermal Current (Ith) | Auxiliary Circuit NC 5 A
Auxiliary Circuit NO 5 A |
| Suitable For Contactor | A95, AX95, AX115, AX150
A110
AE95
AE110 |
| Standards | IEC/EN 60947-1
IEC/EN 60947-4-1
IEC/EN 60947-5-1
UL 60947-1
UL 60947-4-1 |
Dimensions (mm)
(HxWxD) | 97 x 78 x 111 mm |
| Net weight (Kg) | 0.36 kg |
