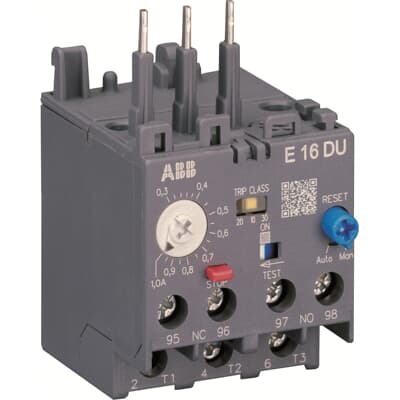

Electronic Overload Relay 2.0-6.3A Suitable For B6, BC6, B7, BC7 (E16DU-6.3)
Specifications | 1SAX111001R1104 |
| Range | Electronic Overload Relay |
| Country of Origin (Estimated) | China (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Extended Product Type | E16DU-6.3 |
| Number of Poles | 3P |
| Number of Auxiliary Contacts | 1NC+1NO |
| Setting Range | 2.0 ... 6.3 A |
| Rated Operational Current (Ie) | 6.3 A |
| Rated Operational Voltage | Auxiliary Circuit 600 V AC/DC
Main Circuit 690 V AC |
| Rated Operational Current AC-15 (Ie) | (240 V) NC 3 A
(240 V) NO 3 A
(400 V) NC 1.1 A
(400 V) NO 1.1 A
(500 V) NC 0.72 A
(500 V) NO 0.72 A |
| Rated Operational Current DC-13 (Ie) | (125 V) NC 0.55 A
(125 V) NO 0.5 A
(24 V) NC 1.5 A
(24 V) NO 1.5 A
(250 V) NC 0.27 A
(250 V) NO 0.27 A
(60 V) NC 0.55 A
(60 V) NO 0.55 A |
| Conventional Free-air Thermal Current (Ith) | Auxiliary Circuit NC 6 A
Auxiliary Circuit NO 6 A |
| Suitable For Contactor | B6,B7,BC6,BC7,
A09,A12,A16
AL09,AL12,AL16
VB6,VB7,VBC6,VBC7 |
| Standards | IEC/EN 60947-1
IEC/EN 60947-4-1
IEC/EN 60947-5-1
UL 60947-1
UL 60947-4-1 |
Dimensions (mm)
(HxWxD) | 74.6 x 44.4 x 57 mm |
| Net weight (Kg) | 0.15 kg |
