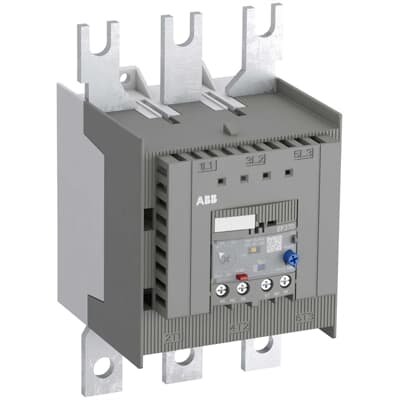

Electronic Overload Relay 115-380A Suitable For AF210-AF370 (EF370-380)
Specifications | 1SAX611001R1101 |
| Range | Electronic Overload Relay |
| Country of Origin (Estimated) | China (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Extended Product Type | EF370-380 |
| Number of Poles | 3P |
| Number of Auxiliary Contacts | 1NC+1NO |
| Setting Range | 115 ... 380 A |
| Rated Operational Current (Ie) | 380 A |
| Rated Operational Voltage | Auxiliary Circuit 600 V AC/DC
Main Circuit 1000 V AC |
| Rated Operational Current AC-15 (Ie) | (240 V) NC 3 A
(240 V) NO 3 A
(400 V) NC 1.1 A
(400 V) NO 1.1 A
(500 V) NC 0.75 A
(500 V) NO 0.75 A |
| Rated Operational Current DC-13 (Ie) | (125 V) NC 0.55 A
(125 V) NO 0.5 A
(24 V) NC 1.5 A
(24 V) NO 1.5 A
(250 V) NC 0.27 A
(250 V) NO 0.27 A
(60 V) NC 0.55 A
(60 V) NO 0.55 A |
| Conventional Free-air Thermal Current (Ith) | Auxiliary Circuit NC 5 A
Auxiliary Circuit NO 5 A |
| Suitable For Contactor | A210
A260
A300
AF210
AF260
AF300
AF265
AF305
AF370 |
| Standards | IEC/EN 60947-1
IEC/EN 60947-4-1
IEC/EN 60947-5-1
UL 60947-1
UL 60947-4-1 |
Dimensions (mm)
(HxWxD) | 187.6 x 105 x 122.8mm |
| Net weight (Kg) | 1.338 kg |
