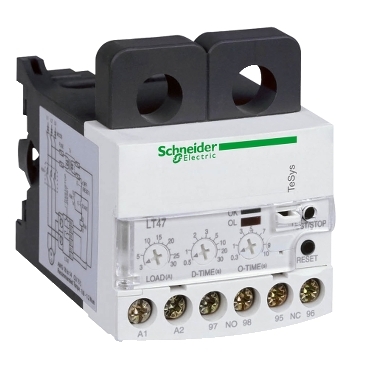

Rờ Le Điện Tử Bảo Vệ Dòng Điện TeSys LT47, 3-30A 24VAC/DC, Reset Bằng Tay


Rờ Le Điện Tử Bảo Vệ Dòng Điện TeSys LT47, 3-30A 24VAC/DC, Reset Bằng Tay

  • Mã sản phẩm: LT4730BS
Giá bán: 2.242.240 ₫ (bao gồm VAT)
Giá gốc: 3.899.500 ₫ (bao gồm VAT)
Tình trạng tồn kho: Hết hàng

Electronic Over CurRent Relays, TeSys LT47, manual, 3 to 30A, 24VAC/DC.

Specifications

LT4730BS

Country of Origin (Estimated)South Korea
Warranty12 months
CO/CQYes (If need)
Product nameTeSys LT
Product or component typeElectronic over current relay
Device short nameLT47
Device applicationProtection
Relay applicationLocked rotor, mechanical jamming I > 3 x Isetting
Overload Imax > Isetting
Sensitivity to phase failure
[Us] rated supply voltage24 V AC
24 V DC
Thermal protection adjustment range3…30 A
Mounting supportRail
Tripping threshold3...25 A
Time range0.5..30 s - control type D-time
0.3...10 s - control type O-time
Local signalling1 LED (green)
1 LED (red)
Control typepush-button: reset
electrical: reset
StandardsIEC 60947
IEC 60255-6
Dimensions (mm)
(HxWxD)
70.3x71x77.2 mm
Net weight (Kg)0.192 kg
