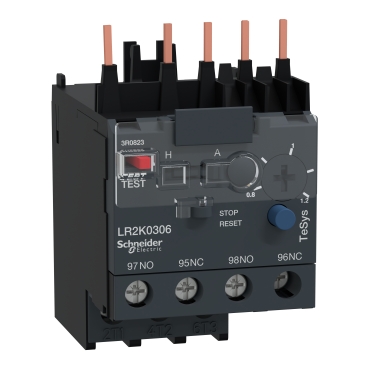

Thermal Overload Relay, TeSys K, 0.8…1.2A, class 10A.
Specifications | LR2K0306 |
| Country of Origin (Estimated) | Czech Republic |
| Warranty | 12 months |
| CO/CQ | Yes (If need) |
| Range | TeSys |
| Product name | TeSys LRK |
| product or component type | Differential thermal overload relay |
| Device short name | LR2K |
| Relay application | Motor protection |
| Product compatibility | LP4K
LC1K
LP1K
LC7K |
| Network type | DC
AC |
| Thermal overload class | Class 10A conforming to IEC 60947-4-1 |
| Thermal protection adjustment range | 0.8…1.2 A |
| Mounting support | Under contactor
Plate, with specific accessories
Rail, with specific accessories |
| Auxiliary contact composition | 1 NO + 1 NC |
| [Ith] conventional free air thermal current | 6 A for signalling circuit |
| [Ue] rated operational voltage | <= 690 V for power circuit
690 V AC AC-15 for signalling circuit
250 V DC DC-13 for signalling circuit |
| Local signalling | Trip indicator (yellow) |
| Control type | Red push-button: trip test function
Blue push-button: stop and manual reset
selector switch: manual or automatic reset |
| Standards | VDE 0660
IEC 60947
NF C 63-650
BS 4941 |
Dimensions (mm)
(HxWxD) | 58x45x65 mm |
| Net weight (Kg) | 0.145 Kg |
