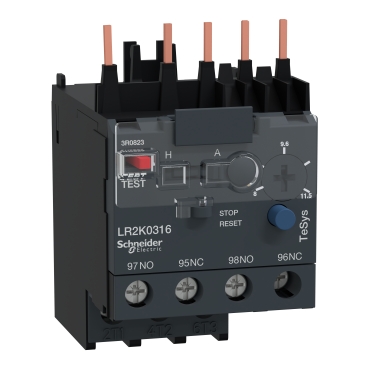

Rờ Le Nhiệt TeSys K, 8-11.5A, Class 10A


Rờ Le Nhiệt TeSys K, 8-11.5A, Class 10A

  • Mã sản phẩm: LR2K0316
Giá bán: 825.440 ₫ (bao gồm VAT)
Giá gốc: 1.435.500 ₫ (bao gồm VAT)
Tình trạng tồn kho: Hết hàng

Thermal Overload Relay, TeSys K, 8…11.5A, class 10A.

Specifications

LR2K0312

Country of Origin (Estimated)Czech Republic
Warranty12 months
CO/CQYes (If need)
RangeTeSys
Product nameTeSys LRK
product or component typeDifferential thermal overload relay
Device short nameLR2K
Relay applicationMotor protection
Product compatibilityLP4K
LC1K
LP1K
LC7K
Network typeDC
AC
Thermal overload classClass 10A conforming to IEC 60947-4-1
Thermal protection adjustment range10…14 A
Mounting supportUnder contactor
Plate, with specific accessories
Rail, with specific accessories
Auxiliary contact composition1 NO + 1 NC
[Ith] conventional free air thermal current6 A for signalling circuit
[Ue] rated operational voltage<= 690 V for power circuit
690 V AC AC-15 for signalling circuit
250 V DC DC-13 for signalling circuit
Local signallingTrip indicator (yellow)
Control typeRed push-button: trip test function
Blue push-button: stop and manual reset
selector switch: manual or automatic reset
StandardsVDE 0660
IEC 60947
NF C 63-650
BS 4941
Dimensions (mm)
(HxWxD)
58x45x65 mm
Net weight (Kg)0.145 Kg
