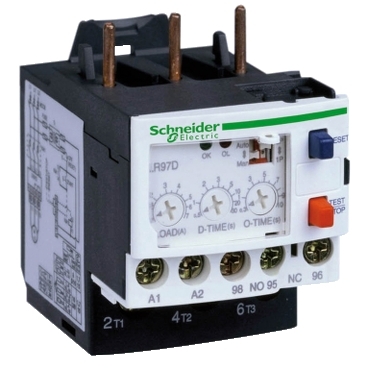

Electronic OverCurRent Relay, TeSys LR97D, 100 - 120VAC, 20 to 38A, 1C/O.
Specifications | LR97D38F7 |
| Country of Origin (Estimated) | South Korea |
| Warranty | 12 months |
| CO/CQ | Yes (If need) |
| Device short name | LR97 |
| product or component type | Electronic overcurrent relay |
| Device application | Protection |
| Relay application | Locked rotor, mechanical jamming I > 3 x Isetting
Sensitivity to phase failure
Overload Imax > Isetting |
| Product compatibility | LC1D09...D38 |
| Network type | AC |
| [Us] rated supply voltage | 100...120 V AC |
| Thermal protection adjustment range | 20…38 A |
| Mounting support | Direct on contactor
Rail |
| Tripping threshold | 20...34 A |
| Contacts type and composition | 1 C/O |
| Reset | Automatic reset 120 s fixed
Electrical by interruption of power supply for minimum 0.1 s
Manual reset |
| Time range | 0.2...10 s - O-time knob
0.3...10 s - O-time knob
0.5..30 s - D-time knob |
| Signalling function | 2 LEDs |
| Standards | IEC 60947
IEC 60255-6 |
Dimensions (mm)
(HxWxD) | 67.5x45x67.5 mm |
| Net weight (Kg) | 0.172 Kg |
