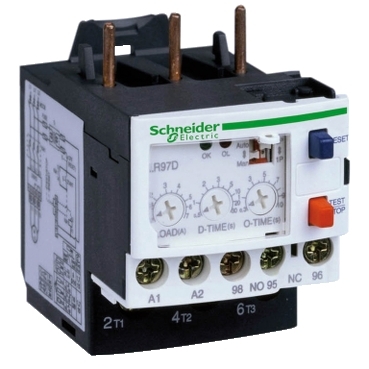

Rờ Le Nhiệt Điện Tử TeSys LR97D, 5-25A 24VAC/DC


Rờ Le Nhiệt Điện Tử TeSys LR97D, 5-25A 24VAC/DC

  • Mã sản phẩm: LR97D25B
Giá bán: 2.226.400 ₫ (bao gồm VAT)
Giá gốc: 3.872.000 ₫ (bao gồm VAT)
Tình trạng tồn kho: Hết hàng

Electronic OverCurRent Relay, TeSys LR97D, 24VAC/DC, 5- 25A, 1C/O.

Specifications

LR97D25B

Country of Origin (Estimated)South Korea
Warranty12 months
CO/CQYes (If need)
Device short nameLR97
product or component typeElectronic overcurrent relay
Device applicationProtection
Relay applicationLocked rotor, mechanical jamming I > 3 x Isetting
Sensitivity to phase failure
Overload Imax > Isetting
Product compatibilityLC1D09...D38
Network typeAC
DC
[Us] rated supply voltage24 V AC/DC
Thermal protection adjustment range5…25 A
Mounting supportDirect on contactor
Rail
Tripping threshold5...21 A
Contacts type and composition1 C/O
ResetAutomatic reset 120 s fixed
Electrical by interruption of power supply for minimum 0.1 s
Manual reset
Time range0.2...10 s - O-time knob
0.3...10 s - O-time knob
0.5..30 s - D-time knob
Signalling function2 LEDs
StandardsIEC 60947
IEC 60255-6
Dimensions (mm)
(HxWxD)
67.5x45x67.5 mm
Net weight (Kg)0.172 Kg
