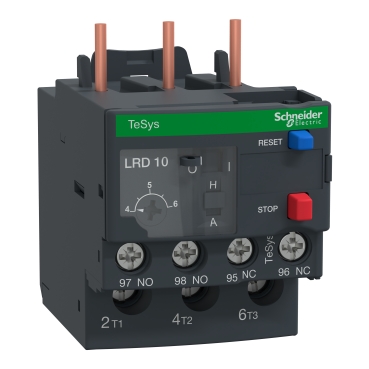

Thermal Overload Relay, TeSys Deca, 690VAC, 4 to 6A, 1NO+1NC, class 10A, scRew clamp.
Specifications | LRD10 |
| Country of Origin (Estimated) | Thailand |
| Warranty | 12 months |
| CO/CQ | Yes (If need) |
| Product name | TeSys LRD
TeSys Deca |
| Product or component type | Differential thermal overload relay |
| Device short name | LRD |
| Relay application | Motor protection |
| Product compatibility | LC1D09
LC1D32
LC1D38
LC1D12
LC1D18
LC1D25 |
| Network type | DC
AC |
| Thermal overload class | Class 10A conforming to IEC 60947-4-1 |
| Thermal protection adjustment range | 4…6 A |
| Mounting support | Plate, with specific accessories
Rail, with specific accessories
Under contactor |
| Auxiliary contact composition | 1 NO + 1 NC |
| [Ue] rated operational voltage | 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1 |
| Control type | Red push-button: stop
Blue push-button: reset |
| Tripping threshold | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 |
| Standards | EN/IEC 60947-4-1
EN/IEC 60947-5-1
UL 60947-4-1
UL 60947-5-1
CSA C22.2 No 60947-4-1
CSA C22.2 No 60947-5-1
GB/T 14048.4
GB/T 14048.5
EN 50495 |
Dimensions (mm)
(HxWxD) | 66x45x70mm |
| Net weight (Kg) | 0.124 Kg |
