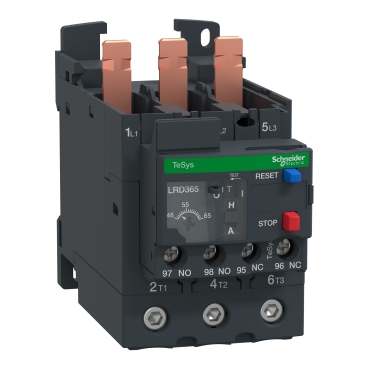

Rờ Le Nhiệt TeSys Deca, 48-65A, Class 10A


Rờ Le Nhiệt TeSys Deca, 48-65A, Class 10A

  • Mã sản phẩm: LRD365
Giá bán: 1.884.850 ₫ (bao gồm VAT)
Giá gốc: 3.278.000 ₫ (bao gồm VAT)
Tình trạng tồn kho: Còn hàng

Thermal Overload Relay, TeSys Deca, 690VAC, 48 to 65A, 1NO+1NC, class 10A, EverLink BTR scRew.

Specifications

LRD365

Country of Origin (Estimated)France
Warranty12 months
CO/CQYes (If need)
Product nameTeSys LRD
TeSys Deca
Product or component typeDifferential thermal overload relay
Device short nameLRD
Relay applicationMotor protection
Product compatibilityLC1D65A
LC1D50A
Network typeDC
AC
Thermal overload classClass 10A conforming to IEC 60947-4-1
Thermal protection adjustment range48…65 A
Mounting supportPlate, with specific accessories
Rail, with specific accessories
Under contactor
Auxiliary contact composition1 NO + 1 NC
[Ue] rated operational voltage690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
Control typeRed push-button: stop
Blue push-button: reset
Tripping threshold1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
StandardsEN/IEC 60947-4-1
EN/IEC 60947-5-1
UL 60947-4-1
UL 60947-5-1
CSA C22.2 No 60947-4-1
CSA C22.2 No 60947-5-1
GB/T 14048.4
GB/T 14048.5
EN 50495
Dimensions (mm)
(HxWxD)
70x55x123 mm
Net weight (Kg)0.375 Kg
