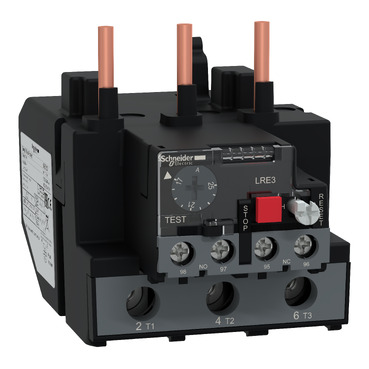

Rờ Le Nhiệt Easy TeSys, 17-25A, Class 10A


Rờ Le Nhiệt Easy TeSys, 17-25A, Class 10A

  • Mã sản phẩm: LRE322
Giá bán: 614.130 ₫ (bao gồm VAT)
Giá gốc: 1.116.500 ₫ (bao gồm VAT)
Tình trạng tồn kho: Hết hàng

Thermal Overload Relay,Easy TeSys Protect,17...25A,class 10A.

Specifications

LRE322

Country of Origin (Estimated)China
Warranty12 months
CO/CQYes (If need)
Product nameEasy TeSys Protect
Product or component typeDifferential thermal overload relay
Device short nameLRE
Relay applicationMotor protection
Phase failure sensitivityTripping current 130 % of Ir on two phase, the last one at 0 conforming to IEC 60947-4-1
Product compatibilityLC1E40...95
Network typeAC
Thermal overload classClass 10A conforming to IEC 60947-4-1
Thermal protection adjustment range17…25 A
Signalling functionRelay trip indicator
Mounting supportUnder contactor
Plate, with specific accessories
Rail, with specific accessories
Auxiliary contact composition1 NO + 1 NC
[Ue] rated operational voltage<= 690 V AC
Local signallingTrip indicator
Control typePush-button red stop:
Push-button green reset:
Tripping threshold1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
StandardsIEC 60947-5-1
IEC 60947-4-1
Dimensions (mm)
(HxWxD)
54x70x113 mm
Net weight (Kg)0.47 Kg
