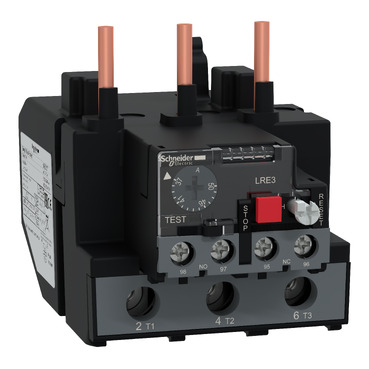

Thermal Overload Relay,Easy TeSys Protect,37…50A,class 10A (LC1E50-LC1E95).
Specifications | LRE357 |
| Country of Origin (Estimated) | China |
| Warranty | 12 months |
| CO/CQ | Yes (If need) |
| Product name | Easy TeSys Protect |
| Product or component type | Differential thermal overload relay |
| Device short name | LRE |
| Relay application | Motor protection |
| Phase failure sensitivity | Tripping current 130 % of Ir on two phase, the last one at 0 conforming to IEC 60947-4-1 |
| Product compatibility | LC1E50...95 |
| Network type | AC |
| Thermal overload class | Class 10A conforming to IEC 60947-4-1 |
| Thermal protection adjustment range | 37…50 A |
| Signalling function | Relay trip indicator |
| Mounting support | Under contactor
Plate, with specific accessories
Rail, with specific accessories |
| Auxiliary contact composition | 1 NO + 1 NC |
| [Ue] rated operational voltage | <= 690 V AC |
| Local signalling | Trip indicator |
| Control type | Push-button red stop:
Push-button green reset: |
| Tripping threshold | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 |
| Standards | IEC 60947-5-1
IEC 60947-4-1 |
Dimensions (mm)
(HxWxD) | 54x70x113 mm |
| Net weight (Kg) | 0.46 Kg |
