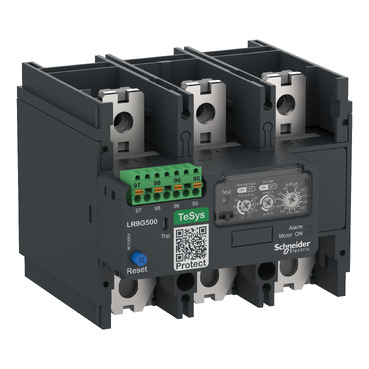

Electronic Thermal Overload Relay,TeSys Giga,125 - 500 A,class 5E-30E,push-in control connection.
Specifications | LR9G500 |
| Country of Origin (Estimated) | China |
| Warranty | 12 months |
| CO/CQ | Yes (If need) |
| Product name | TeSys LRG |
| Product or component type | Electronic thermal overload relay |
| Device short name | LR9G |
| Relay application | Motor protection |
| Network type | AC |
| Thermal overload class | Class 5E...30E conforming to IEC 60947-4-1 |
| Thermal protection adjustment range | 125…500 A |
| Tripping threshold | 1.125 +/- 0.07 In conforming to IEC 60947-4-1 |
| Local signalling | LED
Trip indicator |
| Contacts type and composition | 1 NO + 1 NC |
| [Ith] conventional free air thermal current | 5A |
| [Uc] control circuit voltage | 24...500 V AC 50/60 Hz
24...250 V DC |
| [Ue] rated operational voltage | 1000 V AC 50/60 Hz |
| Reset | Automatic reset
Manual |
| Mounting support | Direct on contactor
Plate |
| Standards | EN/IEC 60947-4-1
EN/IEC 60947-5-1
UL 60947-4-1
CSA C22.2 No 60947-4-1
JIS C8201-4-1
JIS C8201-5-1
IEC 60335-1:Clause 30.2
IEC 60335-2-40:Annex JJ
UL 60335-2-40:Annex JJ
UL 60335-1 |
Dimensions (mm)
(HxWxD) | 114x140x140 mm |
| Net weight (Kg) | 1.55 kg |
