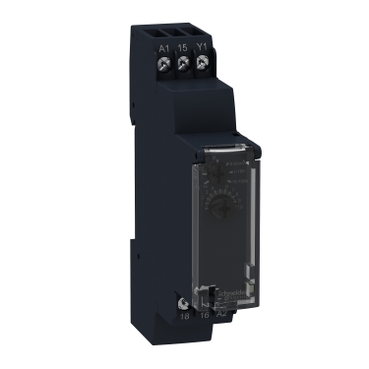

Dual function relay, Harmony Timer Relays, 8A, 1CO, 1s..100h, on delay, cadmium free, 24V DC or 24...240V AC DC.
Specifications | RE17RHMU |
Range of product | Harmony Timer Relays |
Country of Origin (Estimated) | Indonesia |
Warranty | 12 months |
CO/CQ | Yes (if) |
Discrete output type | Solid state |
Width | 17.5 mm |
Product or component type | Modular timing relay |
Component name | RE17L |
Time delay type | Interval |
Time delay range | 10...100 h 0.1...1 s 6...60 min 1...10 s 1...10 min 6...60 s 1...10 h |
Nominal output current | 8 A |
Contacts type and composition | 1 C/O |
Control type | Selector switch front panel |
[Us] rated supply voltage | 24...240 V AC 50/60 Hz 24 V DC |
Voltage range | 0.85...1.1 Us |
release of input voltage | 10 V |
Reset time | 120 ms on de-energisation typical |
On-load factor | 100% |
Electrical durability | 100000 cycles (8 A at 250 V AC maximum) for resistive load |
Mechanical durability | 10000000 cycles |
Mounting support | 35 mm DIN rail conforming to IEC 60715 |
Local signalling | LED indicator for on steady: relay energised, no timing in progress LED indicator for flashing: timing in progress 80 % ON and 20 % OFF LED indicator for pulsing: relay de-energised, no timing in progress (except function Di-D, Li-L) 5 % ON and 95 % OFF |
Function available | H- Interval relay-1 C/O Ht- Interval relay w/ pause/summation (Y1)-1 C/O |
Control type | Without test button |
number of functions | 2 |
Time delay type | H, Ht |
Functionality | On-delay timing |
Compatibility code | RE17 |
Standards | 2006/95/EC 2004/108/EC IEC 61812-1 IEC 61000-6-3 IEC 61000-6-1 IEC 61000-6-4 IEC 61000-6-2 |
Net weight | 0.07 kg |
Height | 90 mm |
Depth | 72 mm |
