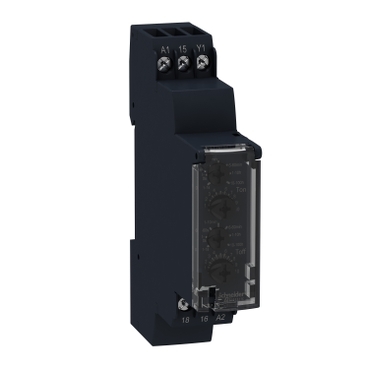

Dual function relay, Harmony Timer Relays, 8A, 1CO, 1s..100h, asymmetrical flashing, 24V DC or 24...240V AC DC.
Specifications | RE17RLMU |
| Range of product | Harmony Timer Relays |
| Country of Origin (Estimated) | Indonesia |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Discrete output type | Solid state |
| Width | 17.5 mm |
| Product or component type | Modular timing relay |
| Component name | RE17R |
| Time delay type | Asymmetrical flashing |
| Time delay range | 1...10 h
1...10 s
0.1...1 s
6...60 min
1...10 min
10...100 h
6...60 s |
| Nominal output current | 8 A |
| Contacts type and composition | 1 C/O |
| Control type | Selector switch front panel |
| [Us] rated supply voltage | 24...240 V AC 50/60 Hz
24 V DC |
| Voltage range | 0.85...1.1 Us |
| release of input voltage | 10 V |
| Reset time | 120 ms on de-energisation typical |
| On-load factor | 100% |
| Electrical durability | 100000 cycles (8 A at 250 V AC maximum) for resistive load |
| Mechanical durability | 10000000 cycles |
| Mounting support | 35 mm DIN rail conforming to IEC 60715 |
| Local signalling | LED indicator for on steady: relay energised, no timing in progress
LED indicator for flashing: timing in progress 80 % ON and 20 % OFF |
| Function available | L- Asymmetrical flashing relay (starting pulse-off)-1 C/O
Li- Asymmetrical flashing relay (starting pulse-on)-1 C/O |
| Control type | Without test button |
| number of functions | 2 |
| Time delay type | L, Li |
| Functionality | Asymmetrical flashing timer |
| Compatibility code | RE17 |
| Standards | 2006/95/EC
2004/108/EC
IEC 61812-1
IEC 61000-6-3
IEC 61000-6-1
IEC 61000-6-4
IEC 61000-6-2 |
| Net weight | 0.07 kg |
| Height | 90 mm |
| Depth | 72 mm |
