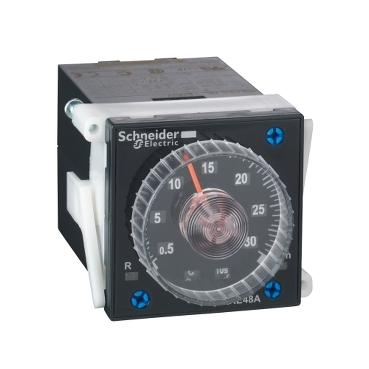

Time delay relay 2 functions - 0.02 s..300 h - 24..240 V AC - 2 OC.
Specifications | RE48AMH13MW |
| Range of product | Harmony Timer Relays |
| Country of Origin (Estimated) | Indonesia |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Discrete output type | Relay |
| Product or component type | Panel-mounted/plug-in timer relay |
| Electrical connection | Plug-in sub-base 8 pin(s) |
| Product or component type | Panel-mounted/plug-in timer relay |
| Discrete output type | Relay |
| Contacts type and composition | 1 C/O + 1 C/O timed or instantaneous contact, AgNi (cadmium free) |
| Component name | RE48 |
| Time delay type | Delay on energization
Pulse-on energization |
| Time delay range | 2...120 h
5...300 min
0.2...12 min
2...120 s
0.2...12 h
0.02...1.2 s
0.5...30 h
0.2...12 s
5...300 h
0.5...30 s
0.05...3 s
5...300 s
2...120 min
0.5...30 min |
| [Us] rated supply voltage | 24...240 V AC/DC 50/60 Hz |
| Voltage range | 0.85...1.1 Us AC
0.9...1.1 Us DC |
| [In] rated current | 5:00 AM |
| Product front plate size | 48 x 48 mm |
| Control type | Selector switch front panel |
| Housing material | Self-extinguishing |
| Electrical durability | 100000 cycles |
| Mechanical durability | 30000000 cycles |
| Output voltage | 240 V at 5 A AC-12
30 V at 2 A DC-13
240 V at 1.5 A AC-15 |
| Mounting support | Base mounted: socket
Panel mounted: system supplied with the product |
| Local signalling | 1 LED (yellow) for output relay state
LED indicator (green) for flashing: relay energised timing in progress
LED indicator (green) for on steady: relay energised, no timing in progress |
| Function available | A1- Delay on energization-2 C/O
A2- Delay on energization-2 C/O
H1-Pulse-on energization-2 C/O
H2-Pulse-on energization-2 C/O |
| Control type | Without test button |
| Shape of pin | Cylindrical |
| Number of functions | 4 |
| Width | 48 mm |
| Net weight | 0.14 Kg |
