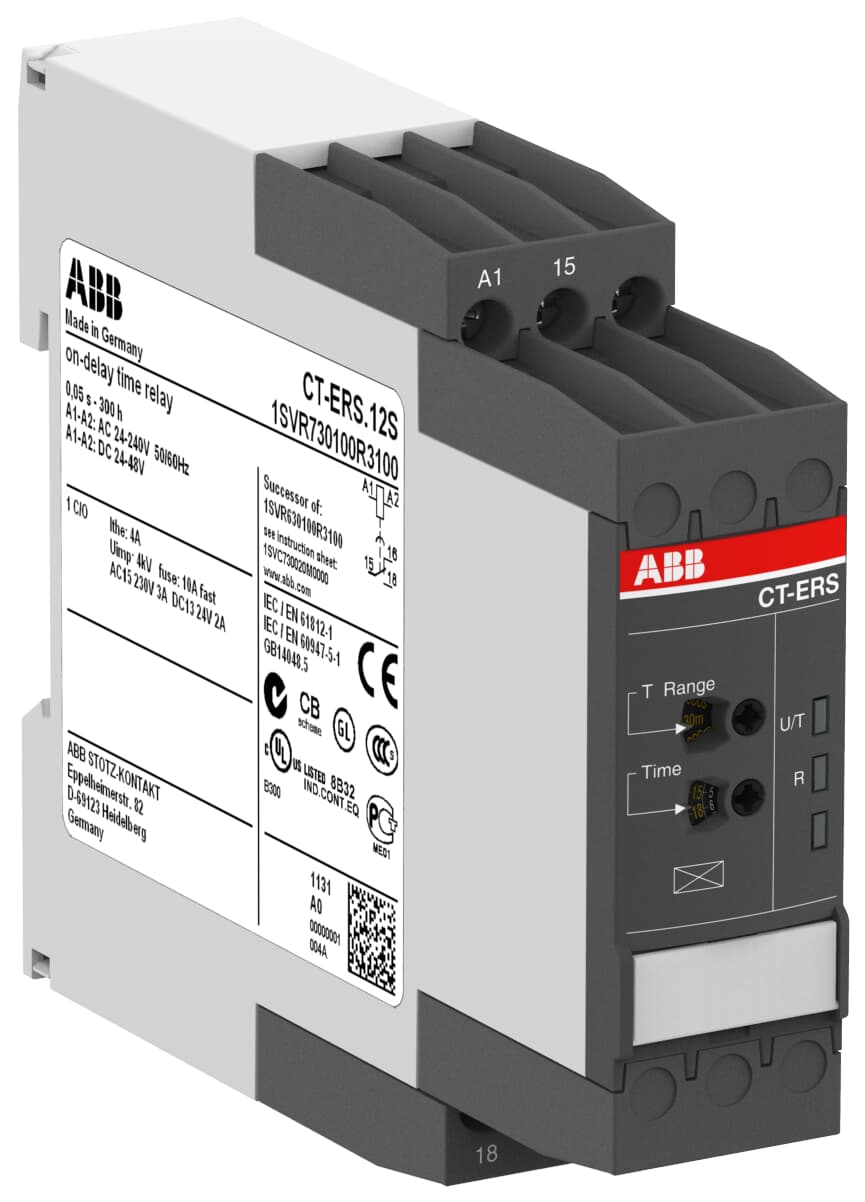

Time relay, ON-delay 1C/O, 0.5s-300h, 24-48VDC, 24-240VAC (CT-ERS.12S)
Specifications | 1SVR730100R3100 |
| Extended Product Type | CT-ERS.12S |
| Country of Origin (Estimated) | Germany (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Time Relay |
| Catalog Description | CT-ERS.12S Time relay, ON-delay 1c/o, 24-48VDC, 24-240VAC |
| Timer Relay Type | ON-Delay |
| Time Range | 0.05 s ... 300 h |
| Rated Control Supply Voltage (Us) | 24 ... 240 V AC
24 ... 48 V DC |
| Rated Operational Voltage | Auxiliary Circuit 250 V |
| Output | 1 c/o (SPDT) contact |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 4 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 4 A |
| Electrical Durability | AC-12 100000 cycle |
| Mechanical Durability | 30000000 cycle |
| Tightening Torque | 0.6 ... 0.8 N·m |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.14
IEC/EN 63000
IEC/EN 61812-1
UL 508 |
| Dimensions (WxHxD) | 22.5 x 85.6 x 103.7 mm |
| Net weight | 0.106 Kg |
