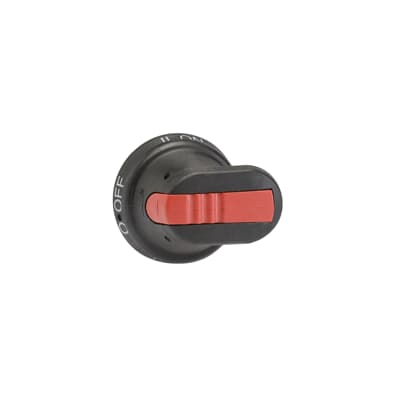

OHB45J6E311 Pistol handle (external) for switches OT16…125F_C.
Specifications | 1SCA022817R2130 |
| Extended Product Type | OHB45J6E311 |
| Range | Accessories CHANGE-OVER SWITCH OTM |
| Country of Origin (Estimated) | Estonia (other) |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name & Device short name | OHB45J6E311 PISTOL HANDLE |
| Device application | Distribution |
| Color | Black |
| Handle Color | Black |
| Degree of Protection | IP65 |
| Handle Type | Pistol |
| Handle Length | 45 mm |
| Lock Type | Yes |
| Suitable for switches | OT16...125F_C |
| Suitable for Shaft type | OXP6X170 |
| Shaft diameter | 6 mm |
| Operating type | Pistol handle (external) not including shaft |
Dimensions (mm)
(H x W x D) | 66 x 78 x 45 mm |
| Net Weight | 0.074 kg |
