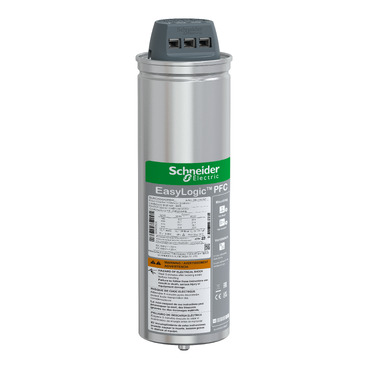

EasyLogic PFC Capacitor, 25/30 kvar - 440 V - 50/60Hz
Specifications | BLRCS250A300B44 |
| Range of product | PowerLogic |
| Country of Origin (Estimated) | India (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Standard duty capacitor |
| Network frequency | 50/60 Hz |
| Series name | EasyLogic PFC Capacitor |
| Network harmonic content | <= 10 % |
| Electrical parameters | 25 kvar 440 V 50 Hz
30 kvar 440 V 60 Hz |
| Continuous overcurrent capacity | 1.5 x In |
| Rated voltage | 440 V AC 50/60 Hz |
| Inrush current | 200 x In |
| Maximum switching operation per year | 5000 |
| Service life in hours | 100000 h |
| Type of installation | Indoor installation |
| Connections - terminals | Double Faston terminal |
| Mounting mode | Vertical |
| Ambient air temperature for operation | -25…55 °C |
| Relative humidity | 95% |
| Standards | IEC 60831-2
IEC 60831-1 |
| Diameter | 90 mm |
| Height | 308 mm |
| Net weight | 2.3 kg |
