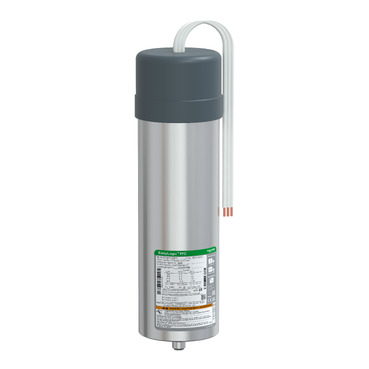

EasyLogic PFC Capacitor, 10/12 kvar - 440 V - 50/60Hz
Specifications | BLRCS100A120B44 |
Range of product | PowerLogic |
Country of Origin (Estimated) | India (Other) |
Warranty | 12 months |
CO/CQ | Yes (if) |
Product or component type | Standard duty capacitor |
Network frequency | 50/60 Hz |
Series name | EasyLogic PFC Capacitor |
Network harmonic content | <= 10 % |
Electrical parameters | 10 kvar 440 V 50 Hz 12 kvar 440 V 60 Hz |
Continuous overcurrent capacity | 1.5 x In |
Rated voltage | 440 V AC 50/60 Hz |
Inrush current | 200 x In |
Maximum switching operation per year | 5000 |
Service life in hours | 100000 h |
Type of installation | Indoor installation |
Connections - terminals | Double Faston terminal |
Mounting mode | Vertical |
Ambient air temperature for operation | -25…55 °C |
Relative humidity | 95% |
Standards | IEC 60831-2 IEC 60831-1 |
Diameter | 70 mm |
Height | 245 mm |
Net weight | 1.1 kg |
