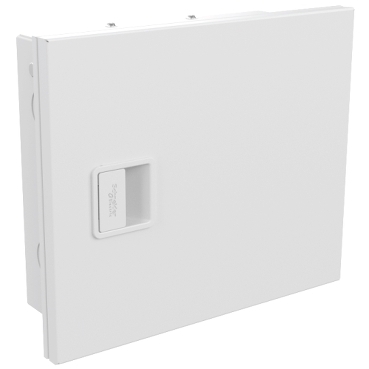

Specifications | A9HESN06 |
| Range of product | Acti9 enclosures |
| Country of Origin (Estimated) | India (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Empty enclosure (Tủ điện căn hộ, nhà ở) |
| Device application | Low voltage electrical distribution |
| Type of front cover | Reversible
Double door |
| Enclosure type | Metal enclosure (Vỏ kim loại) |
| Provided equipment | removable gland plates
removable centre plate
blanking plate
earthing bar
comb busbar
neutral bar
earthing wire
DIN rail |
| Protection device type | Miniature circuit breaker (MCB) 1P 63 A 10 kA outgoer
Isolator 2P main incomer
Miniature circuit breaker (MCB) 2P main incomer
Residual current circuit breaker (RCCB) 2P main incomer
Residual current circuit breaker with overcurrent protection (RCBO) 1P + N 40 A 6 kA outgoer |
| [In] rated current | 63 A (maximum) |
| [Ue] rated operational voltage | 240 V |
| Total number of 18 mm modules | 6 (Tủ có 6 modul, lắp được 6 MCB 1 cực hoặc 3 MCB 2 cực…) |
| Cable entry | 2 knock-outs at left side
2 knock-outs at right side
3 knock-outs at top
3 knock-outs at bottom |
| Cable cross section | 1…25 mm² |
| Number of horizontal rows | 1 |
| Type of rail | DIN |
| Product compatibility | Acti9 isolator
Acti9 MCB
Acti9 RCCB
Acti9 RCBO |
| Enclosure mounting | Surface
Flush |
| Number of ways | 6 ways |
| Colour | White (RAL 9003) |
| Standards | IEC 61439-3 |
| IP degree of protection | IP43 |
| IK degree of protection | IK08 |
| Height | 244 mm |
| Width | 257 mm |
| Depth | 93 mm |
| Net weight | 2.7 kg |
