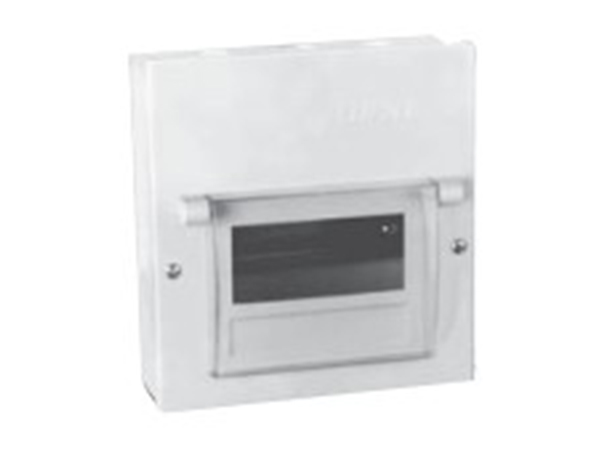

Specifications | EZ9E0104 |
| Range of product | Easy9 |
| Country of Origin (Estimated) | Indonesia (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Modular enclosure (Tủ điện căn hộ, nhà ở) |
| Provided equipment | Box
1 x earth terminal block
1 x neutral terminal block
Door |
| Number of 18 mm modules per row | 4 (4 modul trên 1 hàng, gắn được 4 MCB 1 cực hoặc 2 MCB 2 cực…) |
| Enclosure mounting | Flush ( Lắp âm) |
| Type of rail | DIN (Gắn dinrail) |
| Type of installation | Indoor (Gắn trong nhà) |
| Number of pre-cutouts PG ISO | 8 |
| Terminal block function | Neutral
Earth |
| Cable entry | Pre-cutted holes |
| Type of door | Smoked |
| Lock type | Push-close |
| [In] rated current | 32 A |
| [Ue] rated operational voltage | 400 V AC |
| [Ui] rated insulation voltage | 500 V |
| Enclosure material | Enclosure: self-extinguishing plastic |
| Colour | White (RAL 9003) |
| Standards | IEC 61439-3 |
| IP degree of protection | P40 conforming to IEC 60529 (closed door)
IP30 conforming to IEC 60529 (open door) |
| Width | 136 mm external |
| Height | 222 mm external |
| Depth | 92 mm external |
