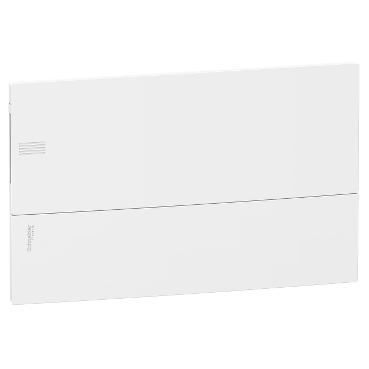

Specifications | MIP22118 |
| Range of product | Resi9 |
| Country of Origin (Estimated) | Italy (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Modular enclosure (Tủ điện căn hộ, nhà ở) |
| Number of 18 mm modules per row | 18 module trên 1 hàng |
| Number of horizontal rows | 1 hàng |
| Total number of 18 mm modules | 18 mô đun (Lắp được 18 át 1 cực hoặc 9 át 2 cực hoặc 6 át 3 cực hoặc 4 át 4 cực + 1 át 2 cực) |
| Type of door | Plain |
| Enclosure mounting | Flush (Tủ Lắp âm tường) |
| [In] rated current | 63 A |
| Type of rail | 35 mm asymmetrical rail |
| Mounting plate description | Without mounting plate |
| Cable entry | Pre-cutted holes |
| Terminal block function | Earth / neutral |
| Number of terminal blocks | 1 earth (screwed) with 8 outgoers
1 neutral (screwed) with 8 outgoers |
| IP degree of protection | IP40 |
| Ambient air temperature for operation | -25…60 °C |
| Enclosure material | Back part: technoplastic
Door: technoplastic
Front face: technoplastic |
| Colour | Front face: white (RAL 9003)
Door: white (RAL 9003) |
| Standards | IEC 61439-1
IEC 61439-3
IEC 60670-1
IEC 60670-24 |
| Width | Wall: 378 mm
Outside: 402 mm |
| Height | Wall: 228 mm
Outside: 252 mm |
| Depth | Outside : 18 mm
Wall : 80 mm
Total : 98 mm |
