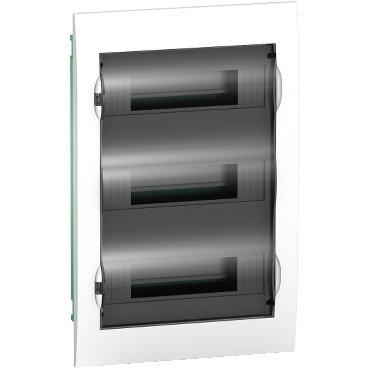

Specifications | EZ9E312S2F |
| Range of product | Easy9 |
| Country of Origin (Estimated) | Russian Fed (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Modular enclosure (Tủ điện căn hộ, nhà ở) |
| Number of 18 mm modules per row | 12 modul trên 1 hàng |
| Enclosure mounting | Flush ( Lắp âm) |
| Type of rail | DIN (Gắn dinrail) |
| Type of installation | Indoor (Gắn trong nhà) |
| 9 mm pitches | 24 |
| Total number of 18 mm modules | 36 modul (36 modul trên 1 hàng, gắn được 12 MCB 1 cực hoặc 18 MCB 2 cực…) |
| Terminal block function | Neutral
Earth |
| Cable entry | Tube entry |
| Number of terminal blocks | 2 earth / neutral (screwed) with 22 outgoers |
| Type of door | Smoked |
| [In] rated current | 80 A |
| [Ue] rated operational voltage | 400 V AC |
| [Ui] rated insulation voltage | 500 V |
| Enclosure material | Enclosure: self-extinguishing plastic |
| Colour | White (RAL 9003) |
| Standards | IEC 60670-1-24 |
| IP degree of protection | IP40 conforming to IEC 60529 (closed door)
IP30 conforming to IEC 60529 (open door) |
| Height | Outside: 470 mm |
| Depth | Outside : 103 mm |
| Width | Outside: 300 mm |
| Net weight | 1890 g |
