Specifications | EZ9E108S2F |
| Range of product | Easy9 |
| Country of Origin (Estimated) | Russian Fed (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |

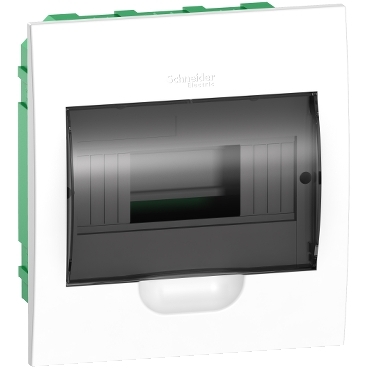

| Product or component type | Modular enclosure (Tủ điện căn hộ, nhà ở) |
| Number of 18 mm modules per row | 8 (8 modul trên 1 hàng, gắn được 8 MCB 1 cực hoặc 4 MCB 2 cực…) |
| Enclosure mounting | Flush ( Lắp âm) |
| Type of rail | DIN (Gắn dinrail) |
| Type of installation | Indoor (Gắn trong nhà) |
| 9 mm pitches | 16 |
| Terminal block function | Neutral
Earth |
| Cable entry | Tube entry |
| Type of door | Smoked |
| [In] rated current | 63 A |
| [Ue] rated operational voltage | 400 V AC |
| [Ui] rated insulation voltage | 500 V |
| Enclosure material | Enclosure: self-extinguishing plastic |
| Colour | White (RAL 9003) |
| Standards | IEC 60670-1-24 |
| IP degree of protection | IP40 conforming to IEC 60529 (closed door)
IP30 conforming to IEC 60529 (open door) |
| Height | Outside: 222 mm |
| Depth | Outside : 92 mm |
| Width | Outside: 208 mm |
| Net weight | 650 g |
